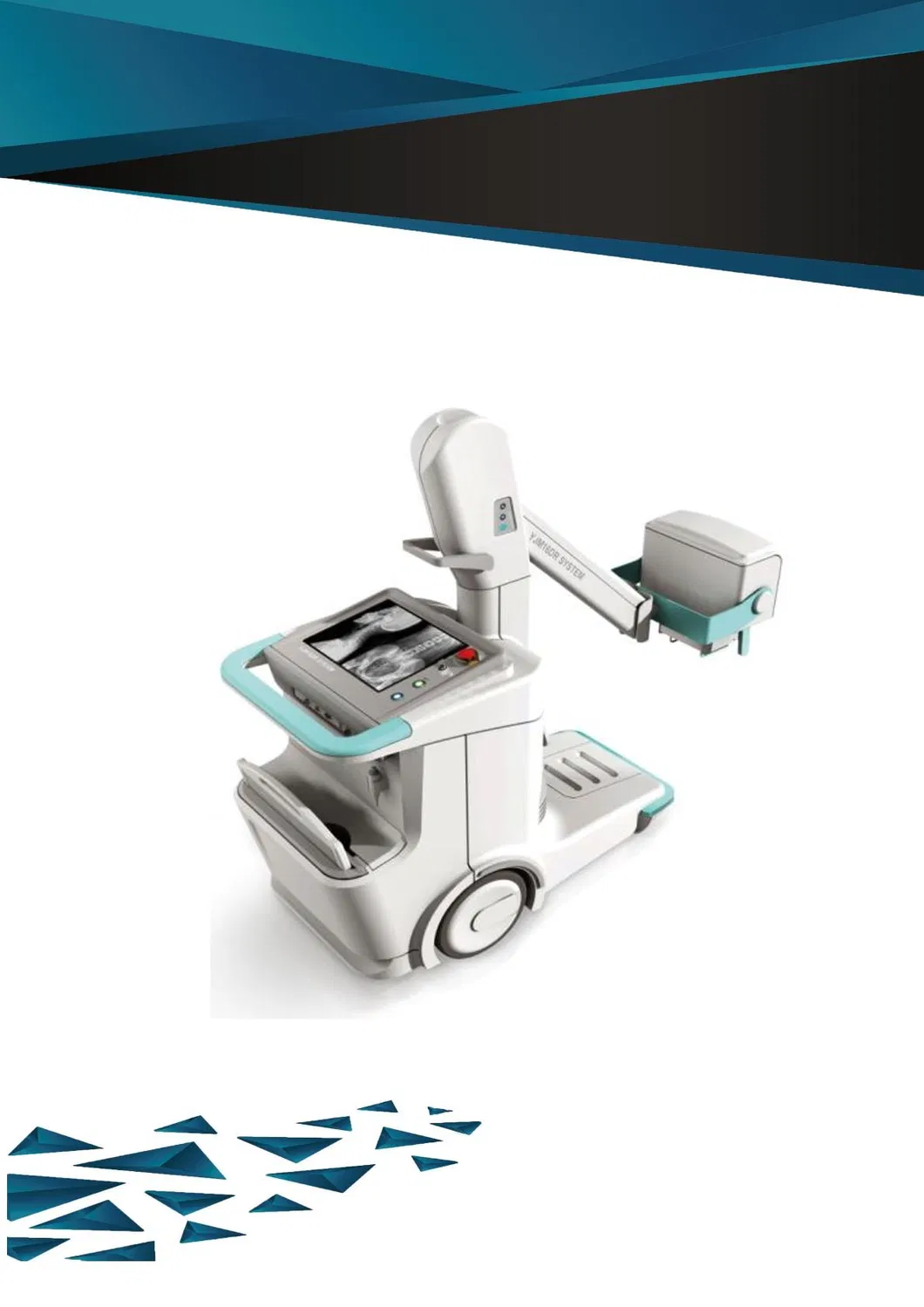

Introduction: 1. This machine is a digital high frequency mobile x-ray system. Suitable for radiology department, orthopedics, ward, emergency room, operating room, ICU, etc., capable of taking x-ray for head, legs, chest, spine, humbar and abdominal, etc. And meet the requirement of whole body taking x-ray. 2. 16kW high power high frequency generator, kV closed-loop control and mAs digital closed-loop control technology, microprocessor real-time control, ensure the dose accuracy and repeatability. 3. High voltage over-voltage protection, over-current protection for tube current, output overload protection function, more safe and reliable. 4. Adopting dedicated super capacitors for supporting machine power supply and reduce the requirement of power net capacity, so it is very convenient for ward in hospital and clinic use, radiography quality is more stavle and reliable. STXR-M16 Mobile Digital Radiography System | Main Component Technical Spe. |
X-ray Generator
(include console) | Output Power | 16KW |
| Power Voltage | 220V±22V |
| kV range | 40~125kV |
| mA range | 10~200mA |
| mAs range | 0.5 ~320mAs |
| Exposure time | 0.002~6.3S |
| | | |
X-ray Tube | Small focus | 0.6 |
| Large focus | 1.2 |
| Anode speed | 3000r/min |
| | | |
Collimator | Inherent filtration | 1.0mm Al /75kV |
| Light Source | LED |
| | | |
Wire Flat Panel Detector | Size | 17X17inch |
| Scintillator | CSI |
| Pixels | 3072*3072 |
| Resolution | 3.6 |
| AD Conversion | 16 |
| | | |
Industrial Computer | CPU | ≥2.8GHz |
| Memory | ≥4GB |
| Disk Capacity | ≥1T |
| Medical LCD | 23inch |
MAIN TECHNICAL INDEXES | X-ray generator | Stationary anode, single focus and bridge silicon rectification.
The x-ray generator is an oil-immersed self-cooled unit. |
| Max rated capacity | Current | 15mA | 30mA | 60mA | 100mA |
| Voltage | 90kvp | 90kvp | 90kvp | 80kvp |
| Time | 6.3s | 6.3s | 4.0s | 3.2s |
| Power supply | Voltage | 180-240V |
| Frequency | 50Hz |
| Capacity | Not over than 7KVA |
| Intemal resistance | Not larger than 1Ω |
| Voltage adjustment range of x-ray tube | 50-90KV |
| Range of the time | 0.08-6.3s |
| Distance between the focus to the ground | 700-1780mm |
| X-ray tube focus transverse rotation | ±60° |
| Specification of x-ray tuble | Model XD42.9/100 fixed anode, single focus 1.8/4.3mm |
| Transport dimension(L×W×H)(mm) | 1230×900×2050 |
| Weight(kg) | Net:159/gross:256 |
Certificates
CE,ISO,Free sales certificate,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations & ect .
