High Frequency Mobile Bubble CPAP with Air Oxygen Blender Neonatal Ventilator

Model NO. : STNCPAP-AD1

Applicable Patients : Premature Neonates and Infants up to 14 Years Old

Fi02 : 21%-100%

Flow Rate : 2-18 Lpm

Noise : <55dB(a)

Weight : 50kg

Transport Package : Carton

Specification : 75*47*86cm

Trademark : SomaTech

Origin : Sichuan, China

MOQ : 1

Price : 2000

Contact Now

High Frequency Mobile Bubble CPAP with Air Oxygen Blender Neonatal Ventilator

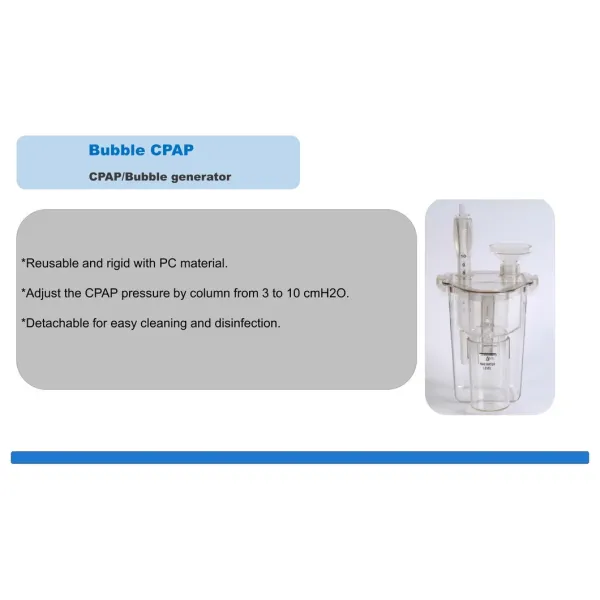

Bubble CPAP
All in one design
Integrated with air oxygen blender, humidifier ,bubble generator ,breathing circuit and patient interface.
Pigeon bubble CPAP is a complete system which assists patient below 14 years old to breathe spontaneously in an effective way.
Simple to operate
The flow rate, oxygen concentration, humidity and pressure can be observed visually and adjusted easily according to clinical needs.
Flexible connection way
Various types of humidifiers, breathing circuits and patient interfaces can be selected to meet the needs of different countries and patients.
Optional medical air compressor
The medical air compressor can be alternative in case of absence or fail of central air supply.

Specification
Model	AD-I
Applicable Patients	Premature neonates and infants up to 14 years old
Fi02	21%-100%
Flow Rate	2-18 LPM
CPAP Pressure	3-10cmH20
Noise	≤55dB(A)
Power	AC220V,50-60Hz(Optional: AC110V,50-60Hz)
Gas Source	Air / Oxygen @ 0.3 MPa -0.4 MPa
Alarm	Gas supply pressure difference >0.l MPa
Packing	AD-l with air compressor: 1 set/carton Dimension:754786cm,G.W.:50KG AD-\| without air compressor: 1 set/carton Dimension:55.538.548.5cm,G.W.:14KG
Humidifier	Standard:PN-2000F Optional:PN-2000FB,PN-2000FC850
Medical Air Compressor	PN-4000 (optional)
Operating Temperature Range	5°C-40°C
Storage Temperature Range	-20°C-55°C
Configuration	AD-l with air compressor : included: Air oxygen blender CPAP generator Reusable breathing circuit kit with water trapTrolley Humidifier with reusable chamberCircuit support arm Horizontal nasal tube kit Medical air compressor AD-\| without air compressor : included : Air oxygen blender CPAP generator Reusable breathing circuit kit with water trap Trolley Humidifier with reusable chamberCircuit support arm *Horizontal nasal tube kit

High Frequency Mobile Bubble CPAP with Air Oxygen Blender Neonatal Ventilator
Certificates
CE,ISO,Free sales certificate,Registeration certificate for medical device,Manufacturing license,qualified industrial registerations & ect .
